Integrated AmplifiersWATT

Product Infomation

		제품명 WATT 카테고리 Integrated Amp. 극한의 해상력과 최고의 다이내믹스를 지닌 오디오 매니아를 위한 순도 100% 인티앰프

• Massive aluminium body and resonance-optimized fixation with invisible screws.
• Magneti­cally and capactively optimized circuit and device design, shortest signal paths.

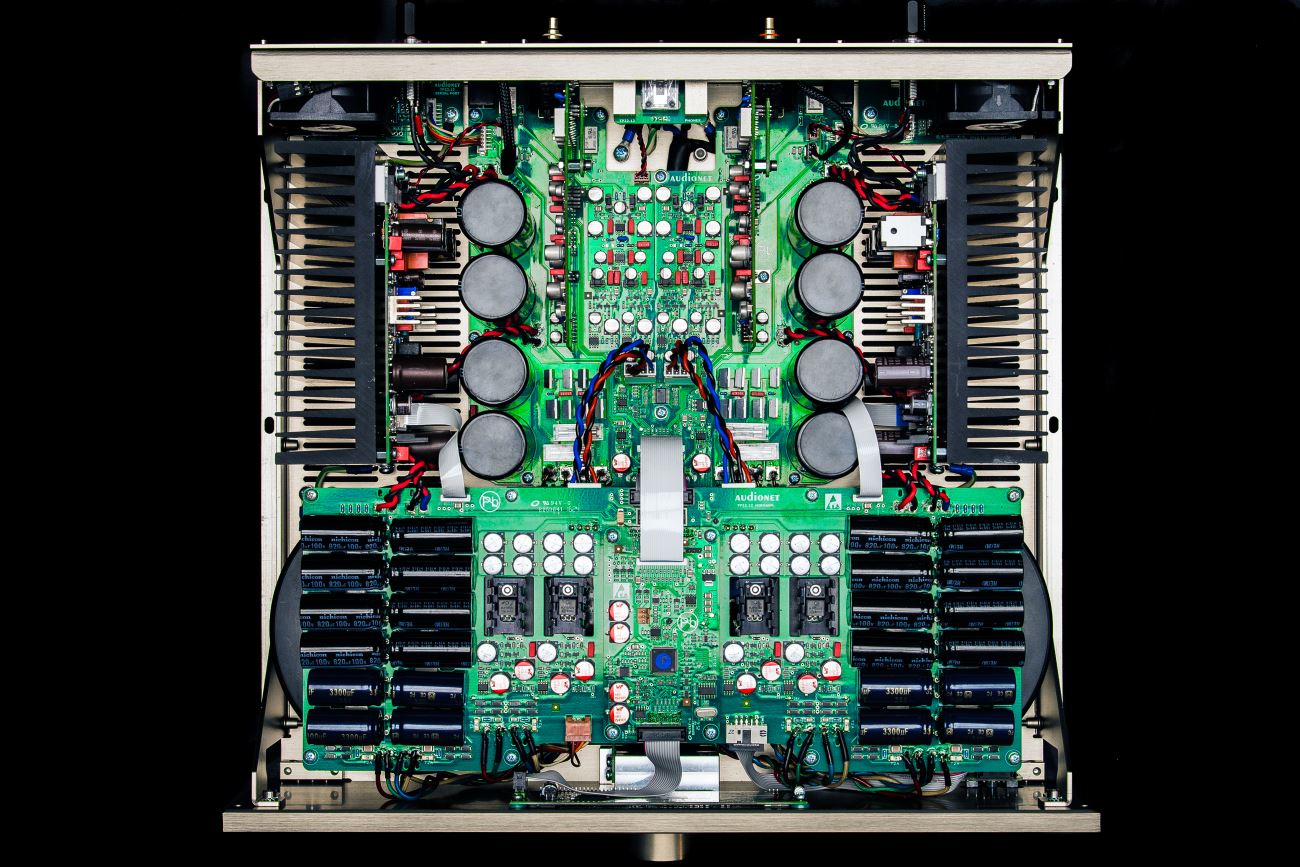

• Double-mono design for maximum channel separation.
• Electronic volume control with high audio grade components.
• Non-disen­gageable DC servo, no sound degrading capa­citors or coils in the signal path.
• ULA technology (Ultra Linear Amplifier).
• Separated power supply for control and analog sections.
• Two separated power supplies for driver stage and power stage of amplifiers.
• One encapsulated 50 VA toroid transformer with separated windings for input and driver stage.
• Two encapsulated 700 VA toroid transformers for the power stage.
• Total capacitance more than 200.000 µF.
• Consequent double-mono design of phono module for MM and MC pickups, setup by user menu.
• Internal wiring with gold-doped pure silver cables.
• Rhodium speaker terminals by Furutech.
• Rhodium fuse.
• By-pass mode for integration into home cinema systems.
• Microprocessor with separate power supply – controls and monitors all functions and informs the user via dimmable display.
• 2 Audionet Link outputs to control further Audionet devices remotely.
• Switchable headphones output driven by power stage.
• Dedicated WATT/PLANCK Audionet metal remote control in matching color.
•


Function

Analog integrated stereo amplifier.

Special Features

• Double mono setup of input, volume control and power amplifier section as well as power supply.
• Separate power supply for digital and analog sections.
• Non-disen­gageable DC servo, no capacitors in the signal path.
• By-Pass function (e.g. for integration into home cinema systems).
• Audionet Link output for remote control of other Audionet components.
• Switchable headphones output.
• Dedicated WATT/PLANCK Audionet metal remote control in matching color (included).

In- and Outputs

Specifications

Technical Data
