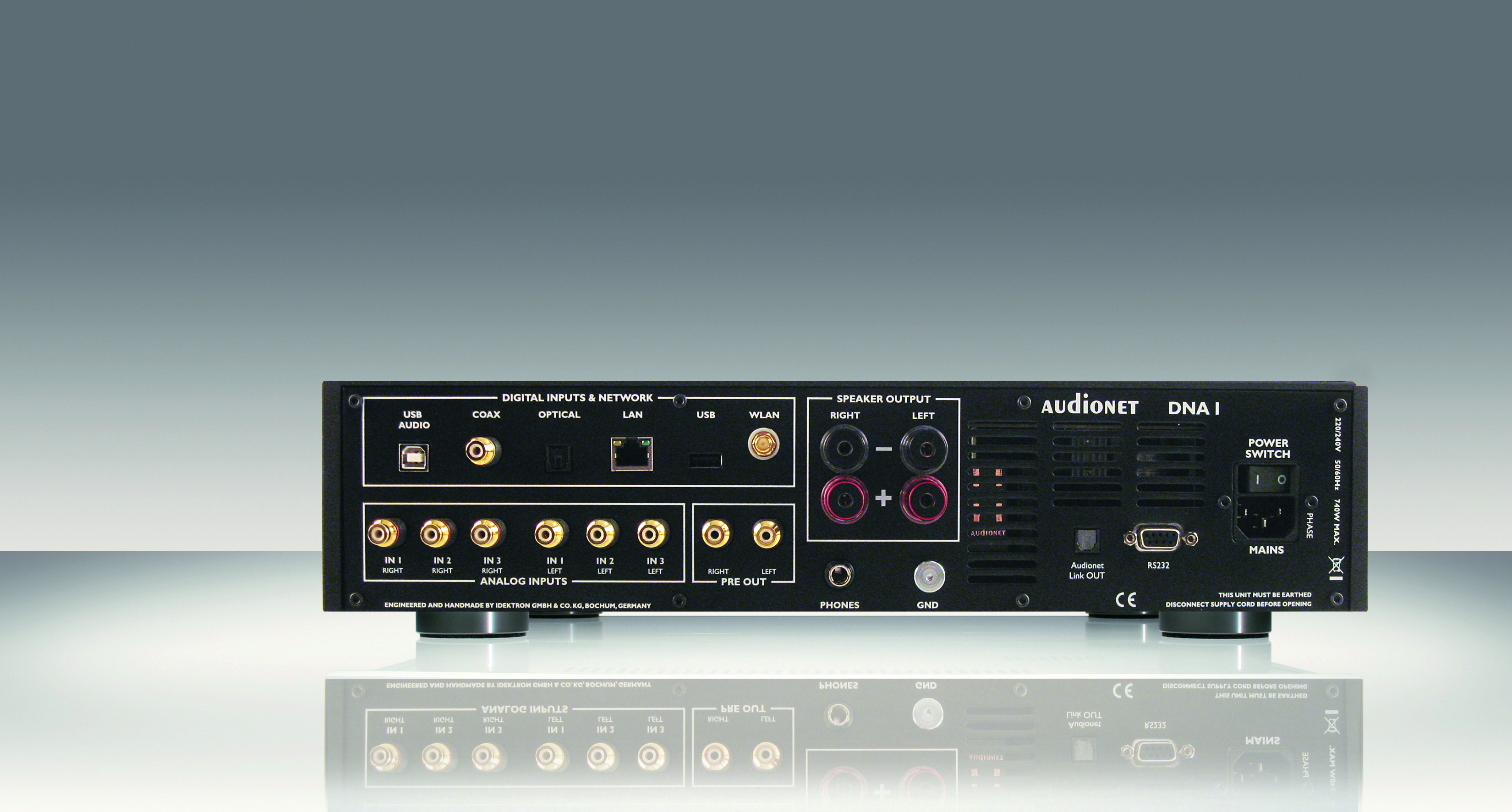

네트워크 플레이어와 인티앰프가 합쳐진 올인원 플레이어 |
 |
|
|
|
Construction
The circuit design is elaborate, technically unique and rigorously implemented. The power supply is strong and fast: a 700 VA toroid transformer, dedicated capacitors with a large total smoothing capacity of 96,000 µF; incorporating low ESR, a special highly effective power input filter, and – last but not least – an optimized circuit design with short paths and low intrinsic capacitance ensuring the powerful and fast-acting characteristics needed for pure, clean power – and sound – delivery.
Signal Processing
The digital section of DNA I is separated from the analogue base board to reduce effectively disturbances caused by the digital high frequency signals. The digital to analogue converter supports digitals signals up to 192 kHz / 24 bit.
The ultra-linear circuitry is designed for exemplary distortion-free, high-speed and stable sound. Sound-damaging influences have been almost entirely eliminated, exemplary reproduction stability is guaranteed. We use only the best materials; carefully selected high-grade components such as audio-grade capacitors with a silk / hemp dielectric; high quality, close-tolerance film impulse capacitors and highest-quality rhodium speaker terminals.
Specifications
Technical Data
| Output: | 2 x 120 Watt into 8 Ohm
2 x 230 Watt into 4 Ohm |
| Damping factor: | typ. 1,000 at 100 Hz |
| Filtering capacitance: | > 96,000 µF |
| THD + N: | < -93 dB, for 20 Hz to 20 kHz |
Analogue inputs | |
| Frequency response: | 1 – 500,000 Hz (-3 dB) |
| SNR: | > 100 dB at 1kHz |
Digital inputs | |
| Frequency response: | 1 – 96,000 Hz, depending on fs |
| Sample frequency fs: | 32kHz – 192 kHz |
| Power consumption: | 1 W stand by,
12 W quick start,
max. 750 W |
| Mains: | 220…240 volts / 50…60 Hz or
100…120 volts / 50…60 Hz |
| Dimensions: | width 430 mm
height 110 mm
depth 360 mm |
| Weight: | 16 kg |
