Product Infomation
 | | 제품명 | Zero TA XD | | 카테고리 | Main Speakers |
ZERO TA XD 는 Full 액티브 방식인 기존 ZERO 1 XD 에서 베이스 부분만 액티브 방식으로 전환한 Semi-Active 방식의 스피커 입니다. 하지만 기존의 아방가르드 어쿠스틱이 추구하는 사운드 성향과 방향성을 정확하게 표현해 내고 있으며 앰프의 선택폭을 다양하게 가져갈 수 있다는 장점도 가지고 있습니다. 또한 XD Control 프로그램을 통해서 EQ 설정을 자유롭게 할수 있기 때문에 취향에 맞게 셋팅값을 컨트롤 할 수 있는 엔트리급 모델입니다. |
 |  |  |
|
OVERVIEW
Technical specifications will not always help in assessing a musical performance. But they do provide information on how painstaking an amplifier is designed:
- 104 dB efficiency
- midrange drivers with Soft-Mesh membrane
- 130 mm spherical tweeter horn
- 400 mm spherical midrange horn
- subwoofer with DSP control
- 12 inch bass driver
- 500 W bass amplifier

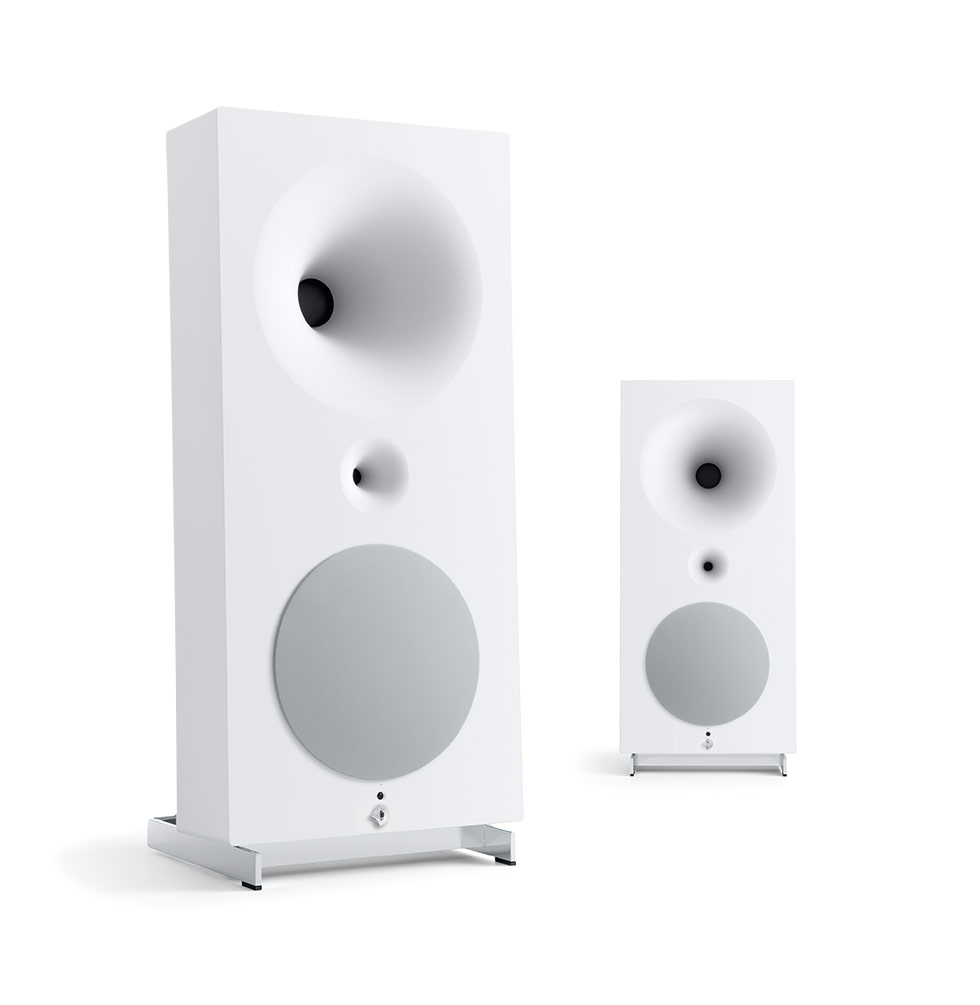

The ZERO - TEIL AKTIV is the logical consequence of the ZERO product line.
It combines the body structure of the ZERO with the 25 years Avantgarde knowhow in semi active speaker design.
Basically it is scaled down version of the UNO in the sifgnifiantly smaller enclosure of the ZERO.
The objective was to accomplish the clarity and power of its “bigger“ brother in a significantly reduced enclosure.
The 400mm spherical midrange horn covers a wide bandwidth down to 300 hz.
The active subwoofer supplements the balance between spherical horn performance and low frequency reproduction.
It is actuated by one 12 inch long–excursion driver powered by a 500 Watt amplifier.
All horn drivers are equipped with 8 ohm voice coils with 104 dB system sensitivity.
This is 32 x times the dynamic range of a conventional 87 dB box speaker.
Using Avantgarde Acoustic´s™ CDC–technology, we precisely align the frequency response, sensitivity of the driver,
the geometry of the membrane and the air chamber at the horn throat to the response curve of the spherical midrange horn. This way the midrange driver has no passive filter components in the signal path – routing the music signal directly to the voice coil of the driver engine.
Less components, less interactions, less friction ensuring more detail.
Frequency control in the low frequencies is managed by an advanced digital sound processor.
The digitally controlled frequency crossover ensure a seamless integration of the bass response to the spherical horns.

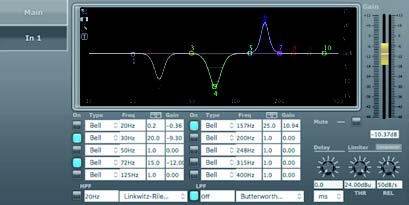

The DSP is equipped with 10 parametric equalizers to fine control the sound to the customers taste and to the acoustics of the room.
Specifications
MECHANICAL CONSTRUCTION
| Foot frame | massive steel, chrome plated, adjustable |

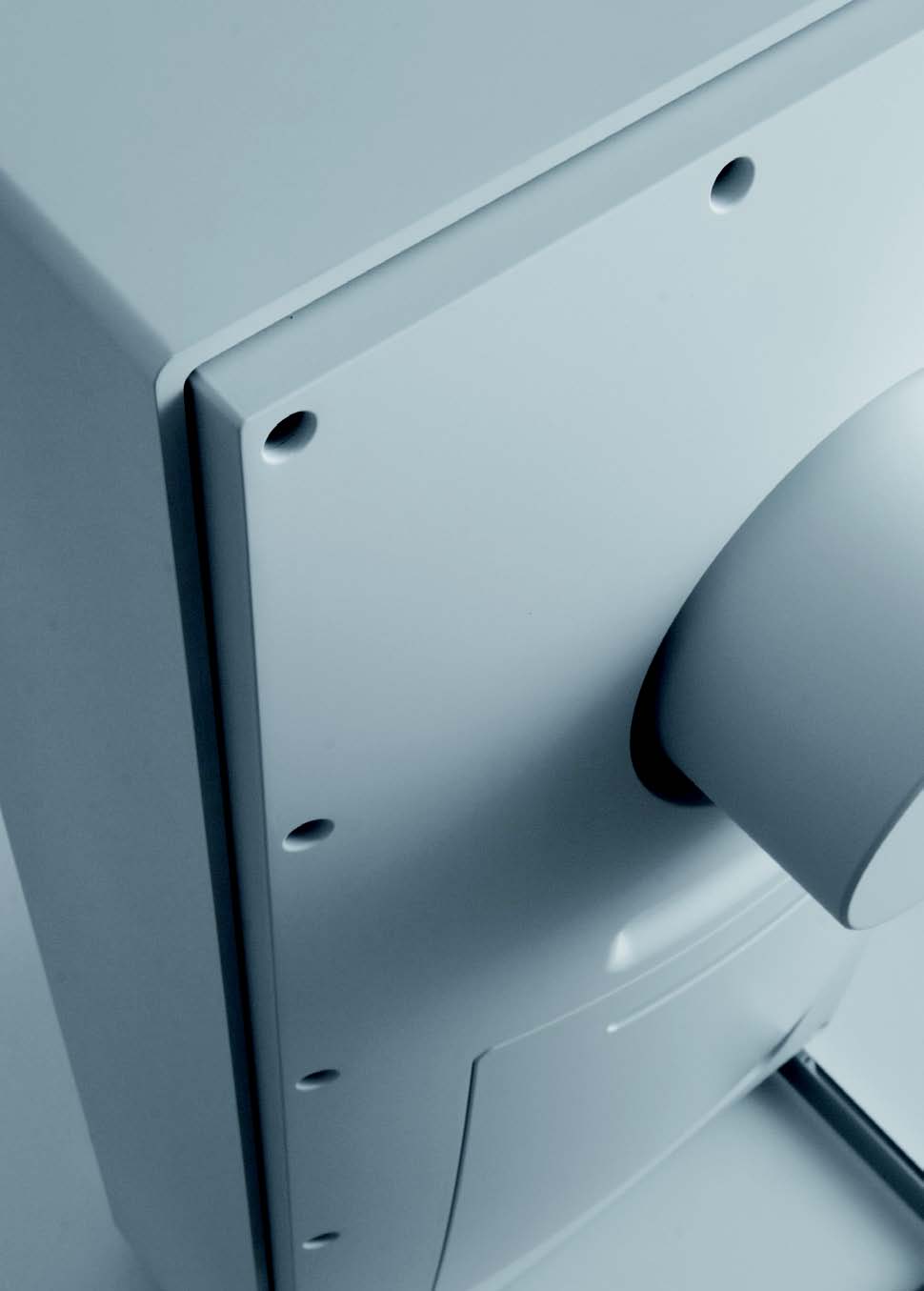

| Cabinet | Reinforced construction from casted PUR |
| Subwoofer front cover | Detachable cloth cover |
| Operation indicator | LED at subwoofer logo panel |
| Subwoofer rear cover | PUR plate, magnetic fixation |
SUBWOOFER VERSTÄRKER

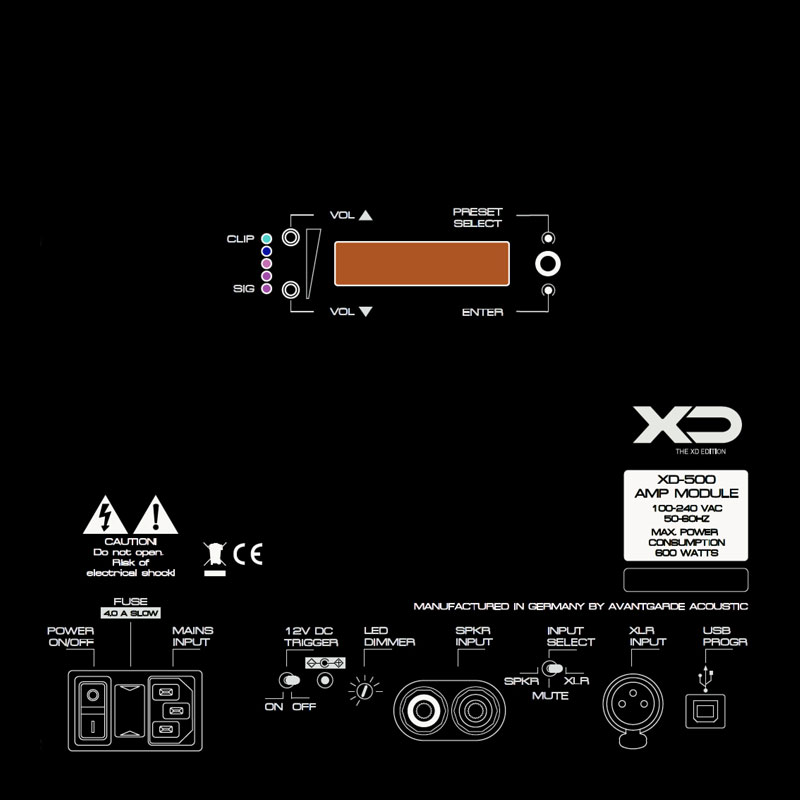

| SUBWOOFER AMPLIFIER | |
| Amplifier power (RMS) | 500 Watt, Class-D |
| Active crossover | programmable by built-in DSP |
| Subsonic filter | programmable by built-in DSP |
| 12V trigger input | yes |
| Limiter | yes |
| Programmable via USB | yes |
| Inputs, switchable | 1 x speaker-level and 1 x XLR (f) |
