Product Infomation
 | | 제품명 | EVO3 Super Titan | | 카테고리 | 전원/차폐장치 |
Super Titan은 고전류 파워 컨디셔닝 기술의 결정체로 35,500W의 과도 성능을 지닌 하이 엔드 전력 증폭기에 대해 매우 낮은 임피던스, 고전류 전력 조절 기능을 제공합니다. Super Titan은 세계에서 가장 강력한 오디오 파일용 메인 컨디셔너입니다. |
 |  |
|
|

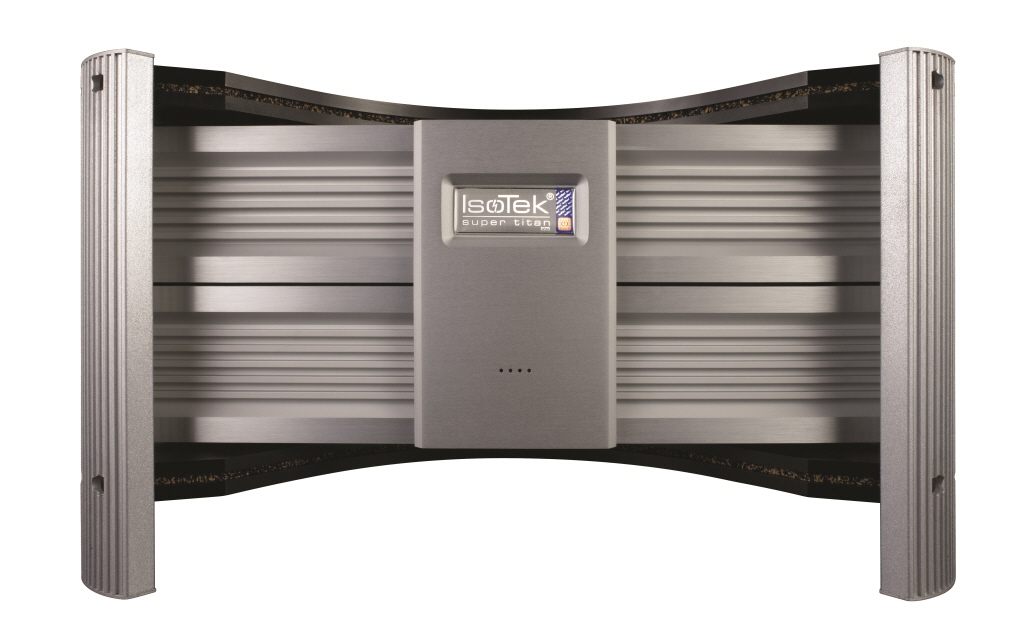

Super Titan is the ultimate statement in high-current power conditioning technology, delivering extremely low-impedance, high-current power conditioning for high-end power amplifiers, with a transient ability of 35,500W. Super Titan is the world’s most powerful audiophile mains conditioner.
- Removes both Common Mode and Differential Mode mains noise.
- RFI reduction 85dB.
- Independent outlets – no outlets are connected together, stopping Differential Mode mains noise cross-contamination.

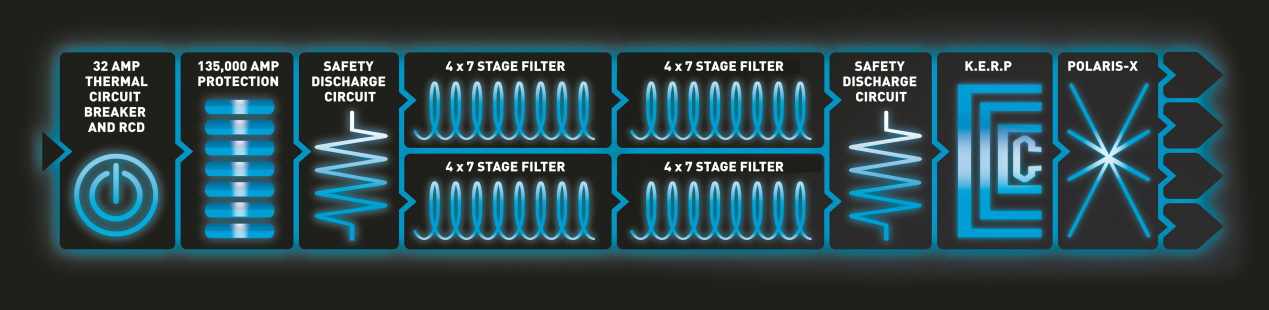

- Unique conditioning network incorporating a group of four seven-stage filters in a series parallel configuration, delivering extremely low-impedance, high-current power.
- KERP© (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery across all outlets.
- 135,000A of instantaneous protection, featuring IsoTek’s unique sequential protection system with earth fault protector.
- Four outlets delivering 7,360W continuous power with 35,500W transient ability.
- Unique ISIS© isolation system – totally eliminates resonance from the sub-chassis of Super Titan.

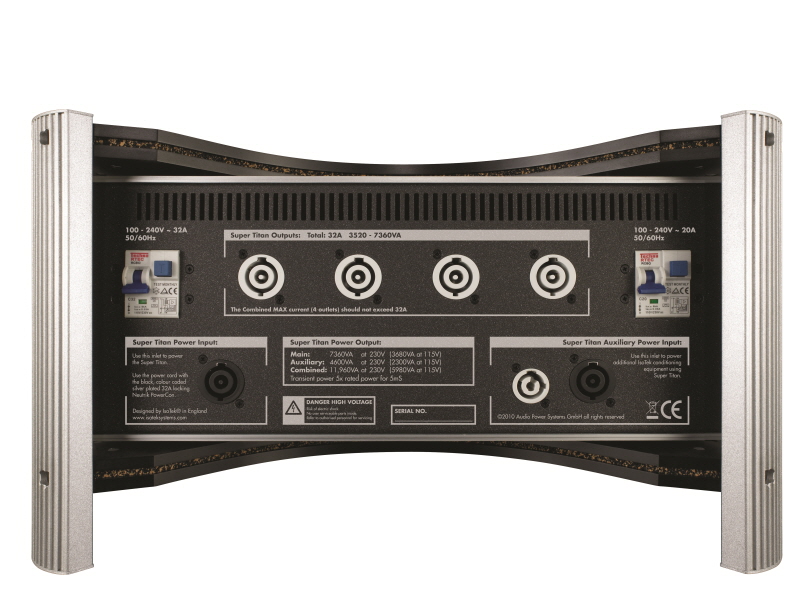

- Available with 32A, UK, EU and US outlet.
Specifications
Number of outletsType of outlets (32A)Type of outlets (20A)Mains inletMains voltageMaximum currentTotal power (nominal 230V)Transient powerSurge protectionDimensions
| 4 + Multi-Link/Auxiliary |
| Silver-plated 32 Amp Neutrik |
| UK, EU, US, CH, AU, ZA |
| Silver-plated 32 Amp Neutrik |
| 100-240VAC/50-60Hz |
| 32 Amp continuous |
| 7,360W continuous power |
| 35,500W |
| 135,000 Amp instantaneous |
| 500 x 300 x 500mm (W x H x D) |
