SelectEVO3 Titan

Product Infomation

		제품명 EVO3 Titan 카테고리 전원/차폐장치 새로운 EVO3 Titan은 독창적인 unique Direct-Coupled© technology 를 활용하면서 회로가 근본적으로 업데이트되었습니다. EVO3 Titan은 가장 작은 폼 팩터에서 최고의 고전류/파워 컨디셔너를 제공합니다.

The new EVO3 Titan is a progression of IsoTek’s original multi-award winning design. Whilst utilising the unique Direct-Coupled© technology, the circuit has been radically updated. EVO3 Titan offers the ultimate high current/ power conditioner in the smallest form factor.

• Removes both Common Mode and Differential Mode mains noise.
• RFI reduction 82dB (50 ohms standard), down to 5Hz frequency range.
• Unique nine-stage conditioning network in a series parallel configuration, that delivers extremely low-impedance and high-current power. An increase of 20% Differential Mode and 600% Common Mode filtering compared to the original GII Titan. 50% of the 40A Super Titan circuit reconfigured to 20A.
• KERP© (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery across all outlets.
• 112,500A of instantaneous protection, featuring IsoTek’s unique sequential protection system with earth fault protector.

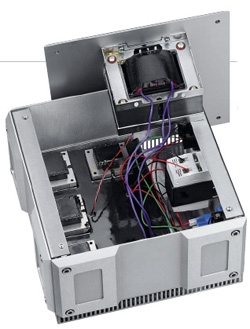

• Internal wiring; solid core silver plated PCOCC with FEP virtually an air dielectric.

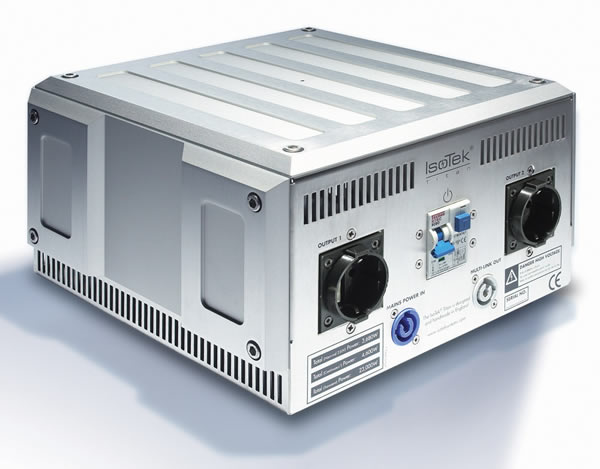

• Two independent outlets deliver 4,600W continuous power with 25,000W transient ability (supply permitting).
• Available with UK, EU, US, Australian, Swiss and South African outlets.

Specifications

Number of outletsType of outletsMains inletMains voltageMaximum currentTotal power (nominal 230V)(Circuit/Transient)Dimensions
