Product Infomation
 | | 제품명 | STUDIOPHONO | | 카테고리 | Phono Amp. |
StudioPhono는 마스터 피팅 엔지니어가 요구하는 모바일 피델리티 사운드 랩의 광범위한 대역폭 투명성을 재현합니다. 모바일 피델리티 Gain2 ™ Ultra 아날로그 커팅 시스템을 담당하는 디자이너인 Tim De Paravicini는 집안의 아날로그 시스템이 LP의 홈에 묻힌 음악을 충실하게 재생할 수 있도록 아날로그 재생 중에 오디오 파일의 선명도, 정확성 및 놀라운 사실감을 만들어내는 특성을 지닌 내부 회로를 설계하는데 참여했습니다. |
 |  |  |  |
StudioPhono replicates the wide bandwidth transparency Mobile Fidelity Sound Lab mastering engineers demand. Tim De Paravicini, the designer responsible for the Mobile Fidelity Gain2™ Ultra Analog cutting system, assisted with the internal circuitry to ensure your analog system at home faithfully reproduces the music buried in the grooves of your LPs.


ADJUSTABLE GAIN AND LOADING
With selectable gain and loading, you will be able to tailor StudioPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.

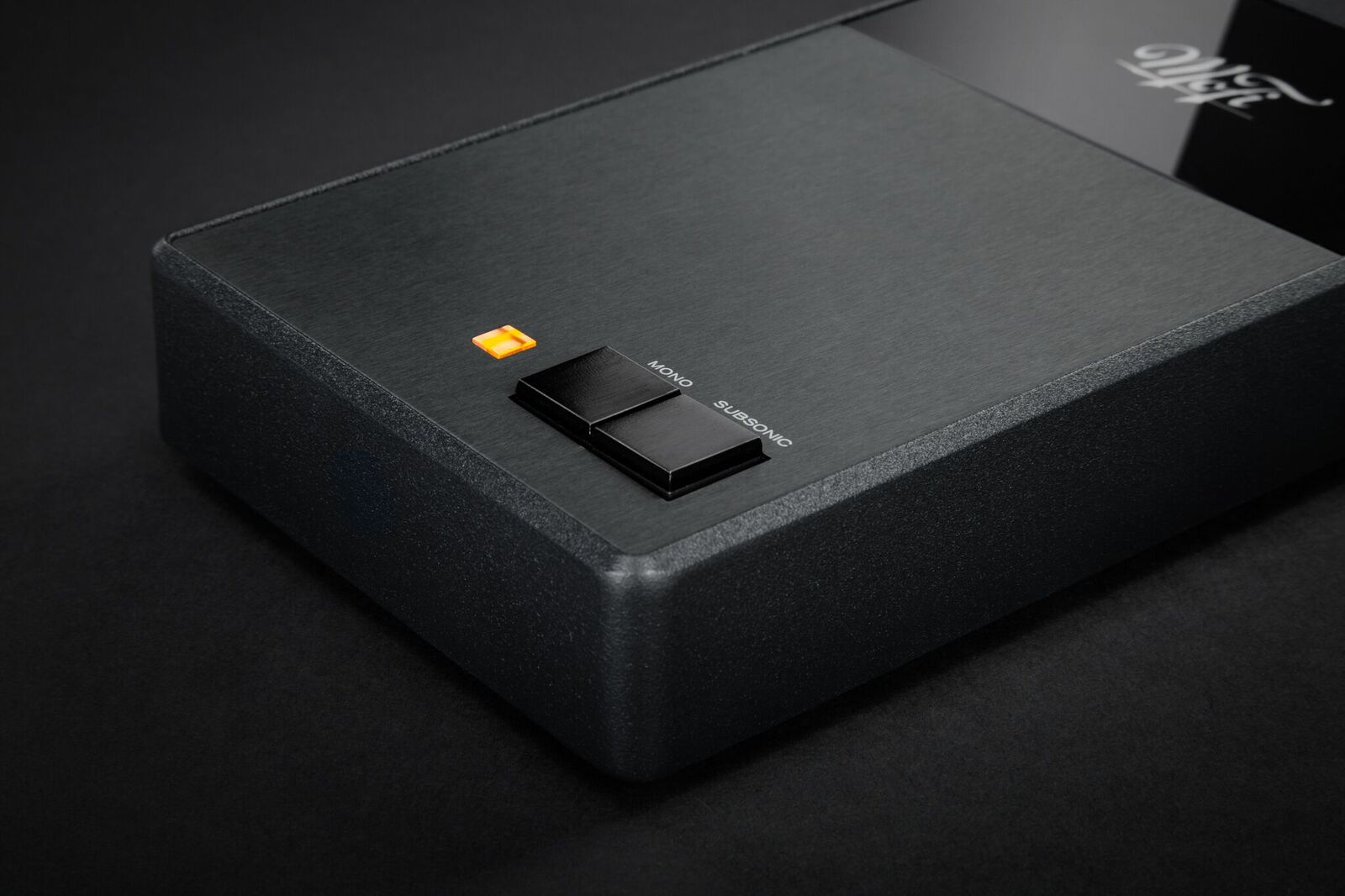

MONO AND SUBSONIC FILTER MODE
Two selectable toggle buttons on the top of the unit can engage Mono or Subsonic filter mode. If you're a fan of mono recordings, vintage or reissues like the Beatles in Mono box set or the Mobile Fidelity Sound Lab Bob Dylan Series, the Mono mode will come as a revelation. It will improve image stability and generate richer tone.
Specifications
※ SPECIFICATIONS
Gain
Adjustable from 40dB - 66dB
THD
< .01% (MM) / < .012% (MC)
Load Impedance (MM)
47,000 Ohms
Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms
Input Capacitance
100pF
※ FEATURES
• Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
• Adjustable loading 75Ω - 47kΩ
• Switchable Mono mode
• Subsonic filter
• External power supply
StudioPhono는 마스터 피팅 엔지니어가 요구하는 모바일 피델리티 사운드 랩의 광범위한 대역폭 투명성을 재현합니다. 모바일 피델리티 Gain2 ™ Ultra 아날로그 커팅 시스템을 담당하는 디자이너인 Tim De Paravicini는 집안의 아날로그 시스템이 LP의 홈에 묻힌 음악을 충실하게 재생할 수 있도록 아날로그 재생 중에 오디오 파일의 선명도, 정확성 및 놀라운 사실감을 만들어내는 특성을 지닌 내부 회로를 설계하는데 참여했습니다.
StudioPhono replicates the wide bandwidth transparency Mobile Fidelity Sound Lab mastering engineers demand. Tim De Paravicini, the designer responsible for the Mobile Fidelity Gain2™ Ultra Analog cutting system, assisted with the internal circuitry to ensure your analog system at home faithfully reproduces the music buried in the grooves of your LPs.
ADJUSTABLE GAIN AND LOADING
With selectable gain and loading, you will be able to tailor StudioPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.
MONO AND SUBSONIC FILTER MODE
Two selectable toggle buttons on the top of the unit can engage Mono or Subsonic filter mode. If you're a fan of mono recordings, vintage or reissues like the Beatles in Mono box set or the Mobile Fidelity Sound Lab Bob Dylan Series, the Mono mode will come as a revelation. It will improve image stability and generate richer tone.
※ SPECIFICATIONS
Gain
Adjustable from 40dB - 66dB
THD
< .01% (MM) / < .012% (MC)
Load Impedance (MM)
47,000 Ohms
Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms
Input Capacitance
100pF
※ FEATURES
• Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
• Adjustable loading 75Ω - 47kΩ
• Switchable Mono mode
• Subsonic filter
• External power supply
