Product Infomation
 | | 제품명 | Tonda | | 카테고리 | Main Speakers |
Tonda는 30mm 세라믹 트위터 또는 30mm 다이아몬드 트위터와 함께 제공됩니다. VIMBERG 크로스 오버 기술을 통해 세라믹 트위터는 거의 들리지 않는 고주파수 수준에서 선명하고 개방성을 제공합니다. 그리고 선택을 원하는 사람들을 위해 우리는 훨씬 더 정교한 30mm 순수 다이아몬드 트위터 옵션을 제공하고 그것을 Tonda D라고 부릅니다. |
|
|
|
|

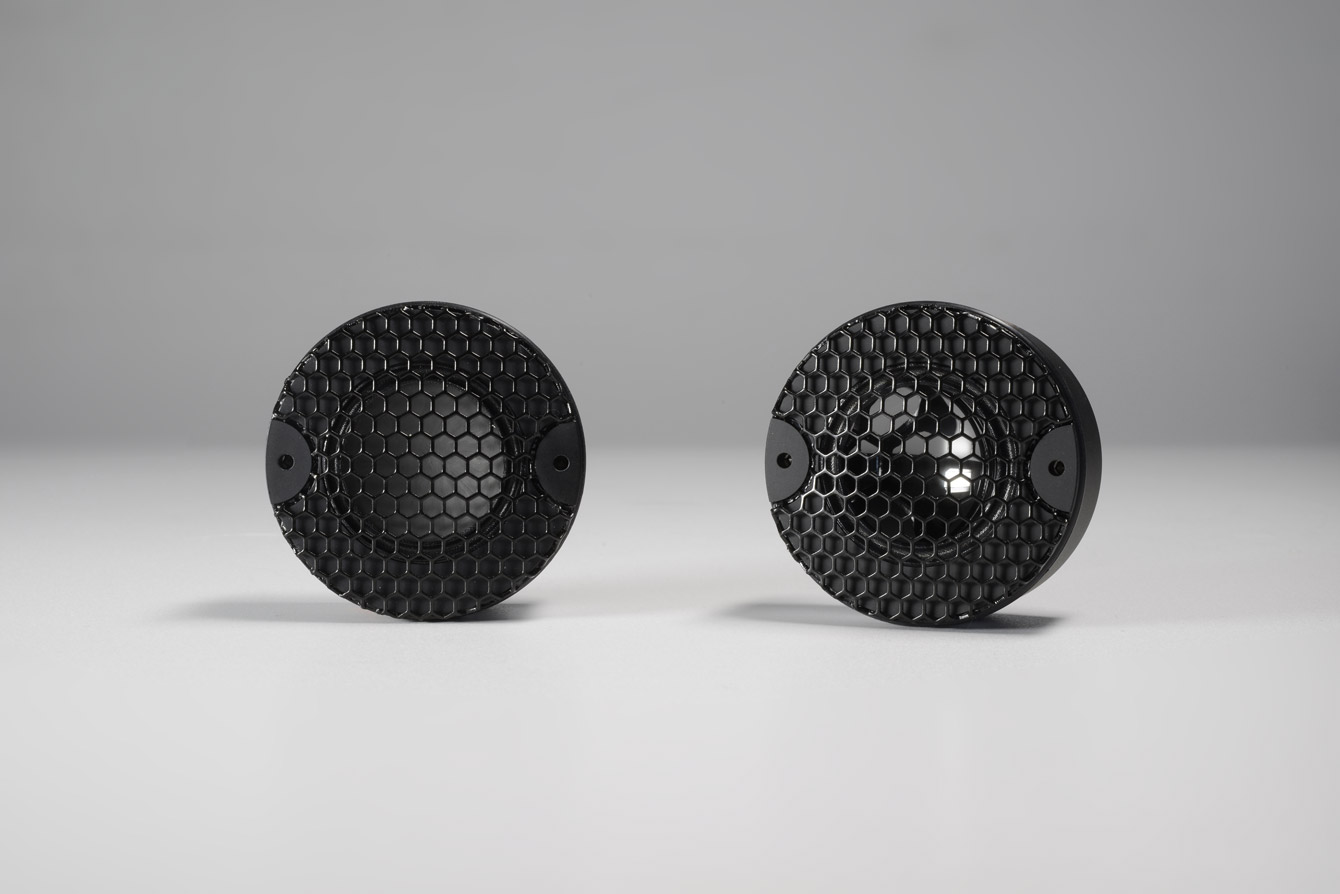

TWEETER
Tonda or Tonda D?
You have the choice: the Tonda comes with a 30 mm ceramic tweeter or optional with a 30 mm diamond tweeter. With our unique VIMBERG crossover technology the ceramic tweeter offers a clarity and openness in the high frequency level rarely heard. And for those who want to have the reference choice we do offer the even more exquisite 30 mm pure diamond tweeter option - and call it Tonda D.

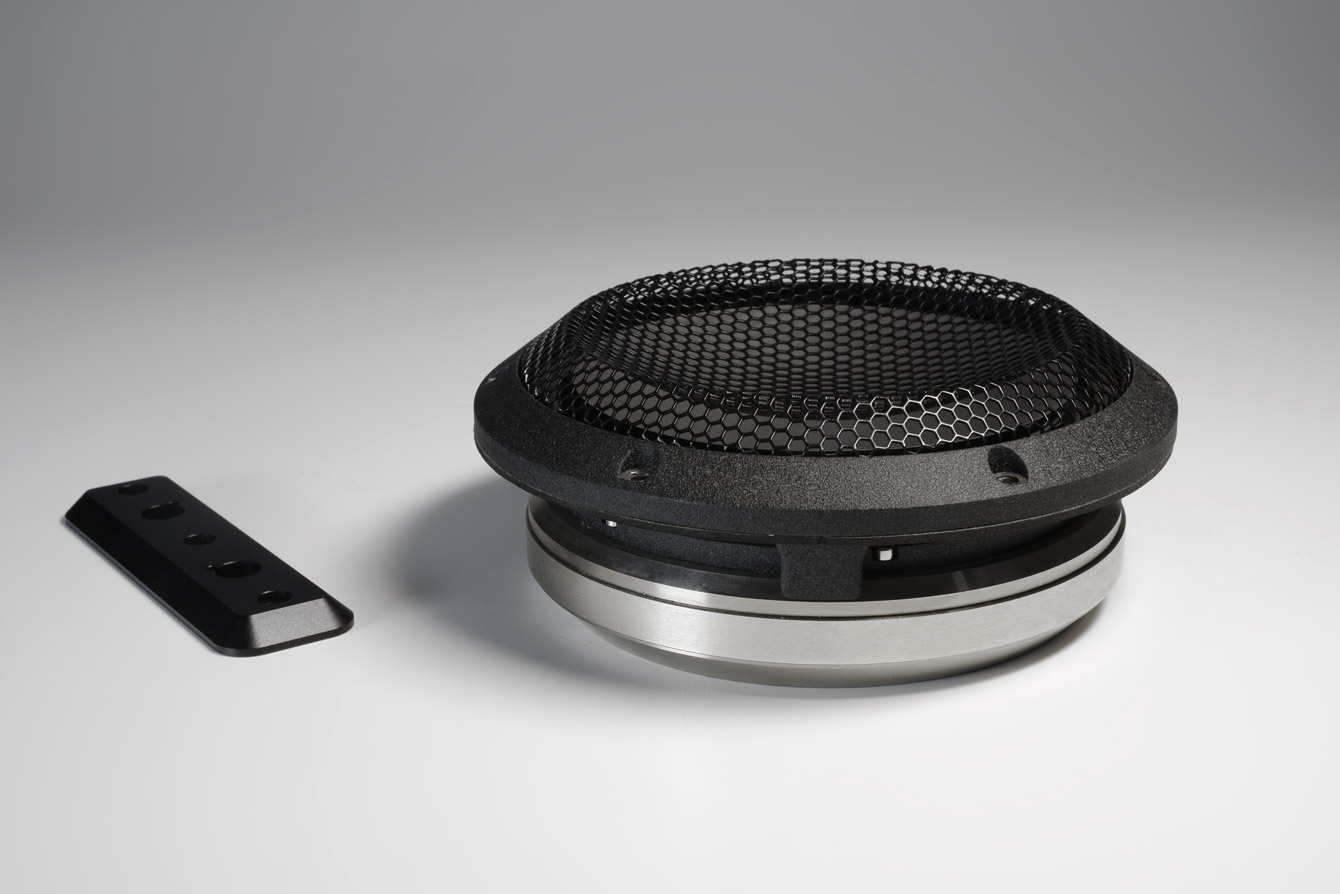

MIDRANGE DRIVER
Ceramic midrange.
The Tonda is being equipped with a 90 mm Accuton ceramic midrange woofer. Despite of its very hard and light diaphragm we managed to integrate this driver without any kind resonances at all and blend it perfectly into the tweeter and the woofers. Like no other.

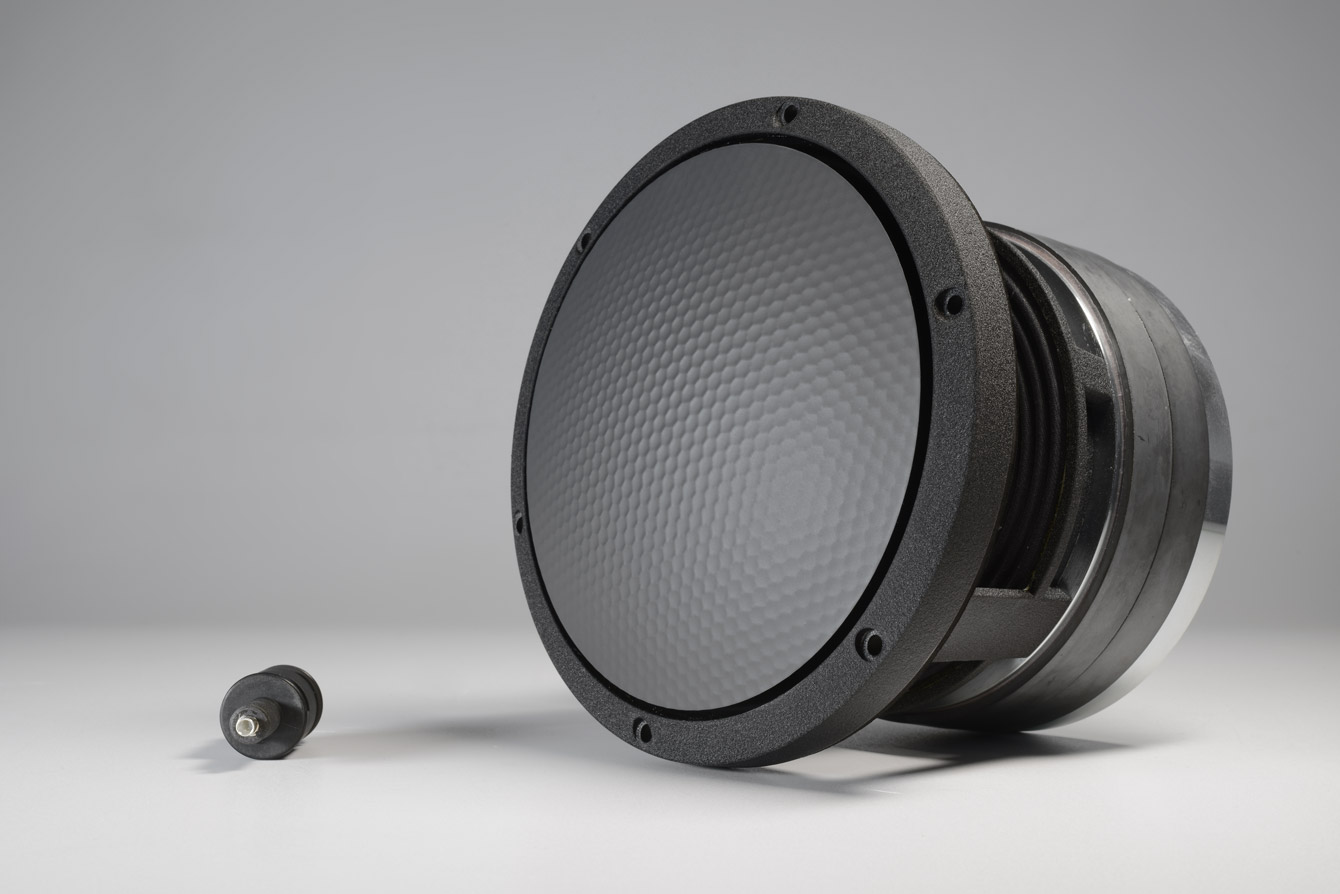

WOOFER DRIVER
Aluminium sandwich woofer.
As woofers we do use three 190 mm Accuton woofers with 3D shaped honeycomb sandwich diaphragm made out of aluminum. These woofers do run in a perfectly calculated volume of air volume inside the Tonda cabinet to reproduce an extreme fast and deep bass. Like no other.

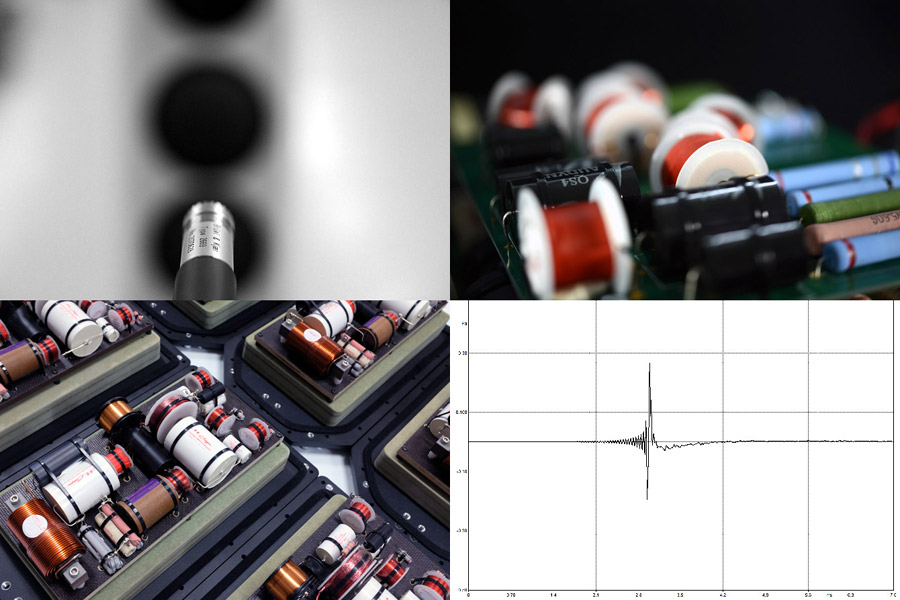

CROSSOVER DESIGN
The architecture of perfect sound.
The VIMBERG Tonda crossover is second to none in design and effort. Not only the parts and execution quality is exceptional, more important the topology was designed specifically for these drivers in this very construction. All this does correspond into superb off-axis performance, an ultra linear frequency response and incredible timing. Also the drivers are perfectly blended into each other without having any kind of resonance left. And the real kicker: we do manage all this avoiding impedance drops and low efficiency. Like no other.

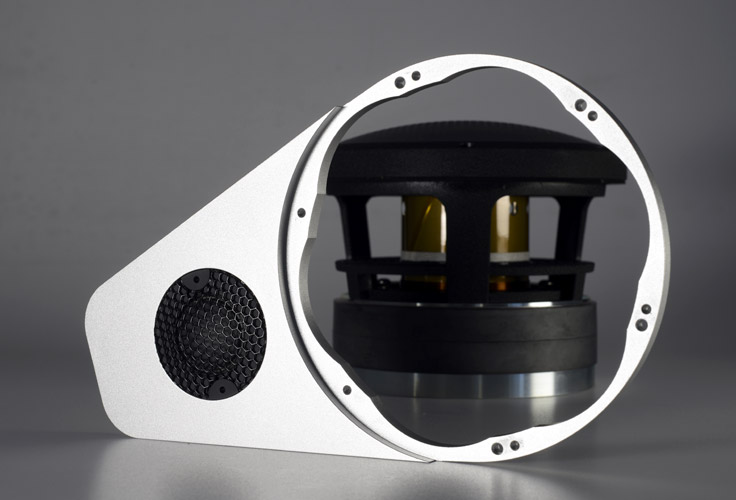

ALUMINUM-HDF HYBRID
Best of both worlds.
The whole high-midrange unit of the VIMBERG Tondais being installed into a massive aluminum front plate. While being as material for a speaker cabinet a poor choice since its resonance behaviour, in this case aluminum reinforces the construction of the Tonda. In combination with the resonance absorbing waterproof HDF fibre laminate the unit gives extremely tight hold to the drivers for utmost precision.

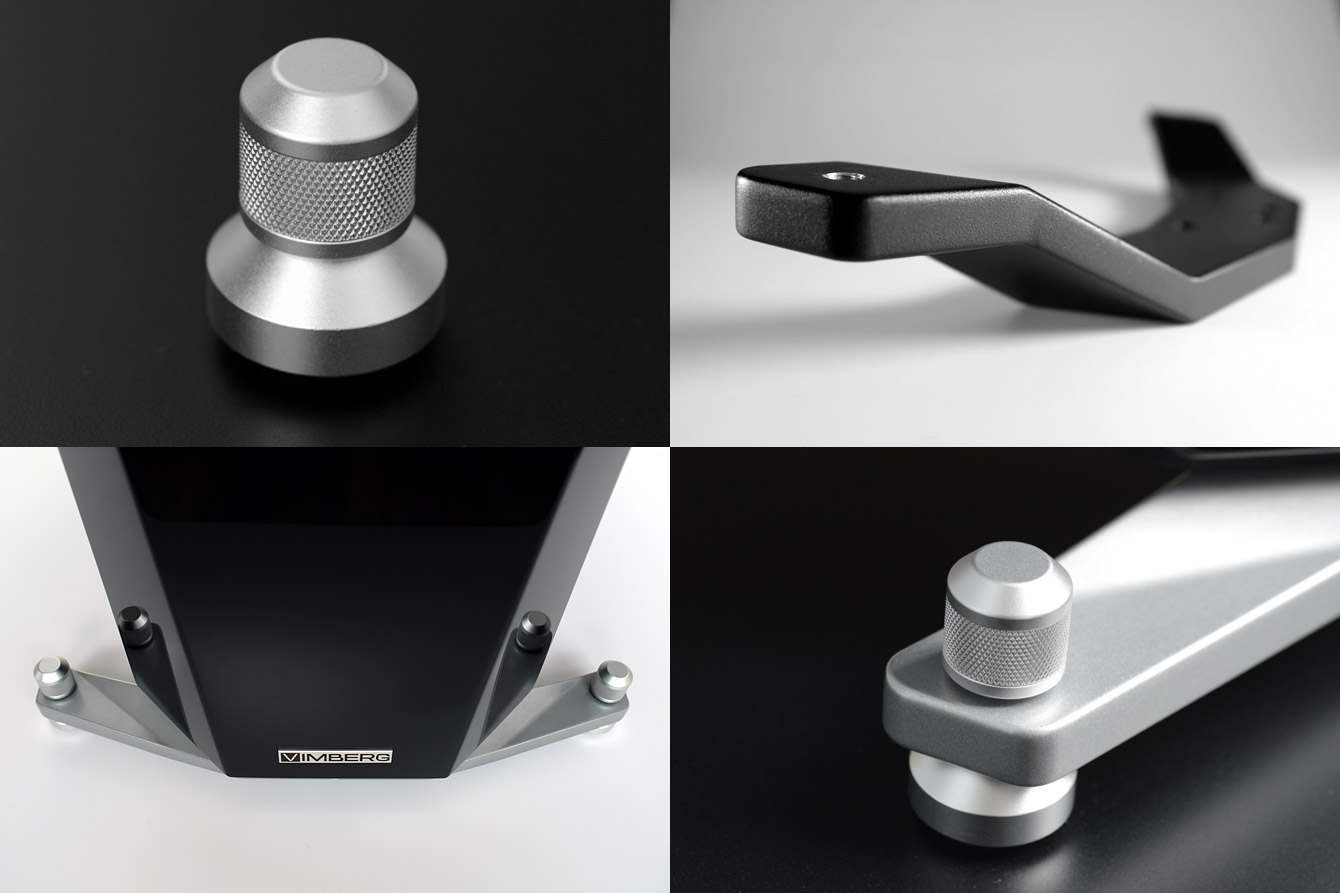

ISOLATION STAND
Stability & Isolation.
The VIMBERG Tonda comes with a massive footer, which we do mill out of one block aluminum, a complex shape with many different angles. This stand then is connected to a 5-part isolation device with a Teflon-glider inlay to have the very best isolation and height adjustment to different grounds such as hardwood floors, tiles or even carpet.

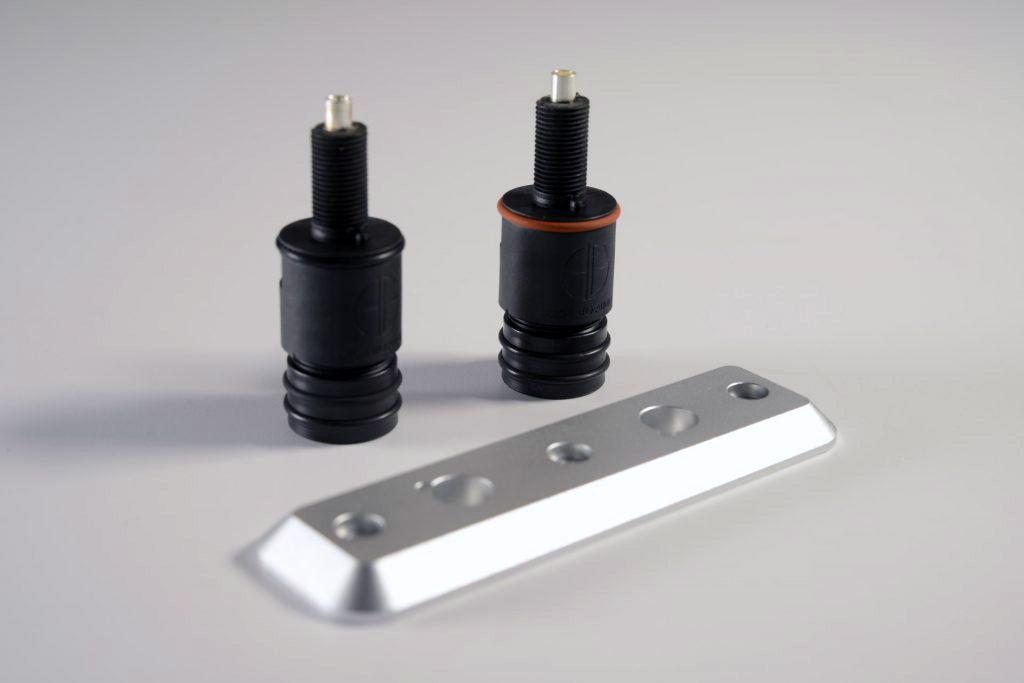

BEST CONNECTION
Best signals are welcome.
Each VIMBERG loudspeaker is using original Argento binding posts. Being molded out of a fiber-reinforced polymer it avoids any kind of magnetical interference with the conductor itself. Internally each VIMBERG speaker is being wired with a true highend coaxial cable.
Specifications
- 3-way fullrange loudspeaker
- VIMBERG™ MRD-cabinet made out of waterproof high density fiberlaminate and reinfocring aluminum elements for all drivers
- 1 x 30 mm Accuton™ Cell ceramic tweeter
1 x 168 mm Accuton™ Cell ceramic midrange woofer
3 x 190 mm Accuton™ Cell woofer, long excursion design with 3D shaped honeycomb sandwich diaphragm - optional: 30mm Accuton™ Cell diamond tweeter (Tonda D), also upgradeable anytime later
- highend Mogami™ speaker cable wiring inside, Argento™ pure silver binding posts
- highend crossover with VIMBERG™ monopulse technology: linear frequency response with optimized impulse response, exclusive use of Mundorf™ & Duelund™ components
- Dual-Tune bassreflex port design for lowest port noise and selectable F3
- Decoupling height adjustable isolation gliders and 3D-shaped installation triggers for optimized setup and placement to every floor
- nominal impedance: 4 ohm (lowest point: 3.4 ohm at 100Hz)
- efficiency at 2.83V/1m/1KHz: 90dB
- Exclusive VIMBERG™ real piano lacquer: summit white or jet black
- Weight without packaging: 2 x 96 Kg (2 x 212 lbs.)
- Weight with packagaing: 2 x 110 Kg (2 x 243 lbs.)
- Weight with optional ATA-flightcase: 2 x 142 Kg (2 x 313 lbs.)
- Shipment dimensions: W 40 cm x L 170 cm x H 64 cm
